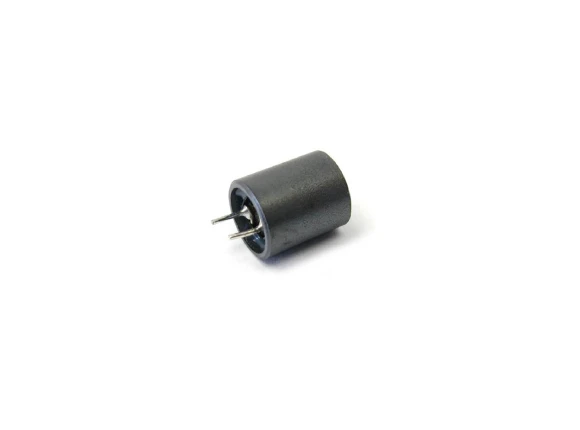

RIP Series Radial Wire Wound Leaded Inductor - Zxcompo RIP Series Radial Wire Wound Leaded Inductors - Zxcompo

RIP Series Vertical Radial Leaded Power Inductors | RIP1014

Features

  • Inductance Range(L): 10 uH – 470 uH
  • DC Resistance: 0.018 Ω – 0.250 Ω
  • Rated DC Current: 104 mA – 1000 mA
  • Core Material: Ferrite

Applications

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

  • Dimensions
  • Downloads
  • Various kinds of radial inductors from Zxcompo like magnetically shielded circuit design, winding cover by magnetic ring core. The through-hole power inductor features a small size, high Q value, low cost, high self-resonance frequency, high availability of a large current, small magnetic flux leakage, and large inductance value.

    Zxcompo Leadtime:
    Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

    Zxcompo Customization:
    In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

    Remark: The design is as per the customer’s request specification.

    📨*Send us your project requirements!*📨

    Shape and Dimensions:


    Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

    Zxcompo Fixed Inline Inductor

    RIP Series Radial Wire Wound Leaded Inductors zxcompo factory

    Parameters of Radial Inductors:


    The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, welcome to contact us. Contact email: sales@ZXcompo.com.


    Title

    Size(mm)

    Inductance(uH)

    Isat(mA)

    Irms(mA)

    DCR Max(Ω)

    Action

    11×13.5

    10

    4500

    4500

    0.029

    11×13.5

    12

    4000

    4000

    0.031

    11×13.5

    18

    3200

    3200

    0.054

    11×13.5

    22

    3200

    3200

    0.060

    11×13.5

    27

    2700

    2700

    0.065

    11×13.5

    33

    2400

    2400

    0.070

    11×13.5

    39

    2250

    2250

    0.075

    RIP Series Radial Wire Wound Leaded Inductor Production Process RIP Series Radial Wire Wound Leaded Inductors RIP Series Radial Wire Wound Leaded Inductors _ ZXcompo Factory

    Product Identification:


    RIP 1014 4R7 M
    • Radial inductor Series name.
    • Leaded inductor Dimensions D×L.
    • Inductance: R47-0.47uH 4R7-4.7uH 470-47uH.
    • Tolerance: K: ±10% M: ±20%.
  • RIP Series Radial Wire Wound Leaded Inductor - Zxcompo

    RIP Series Radial Inductors

    Detailed informations including inductance, tolerance, rated current and DCR.
