TI Series Toroidal Core Inductors

Remark: Design as Customer’s request specification.

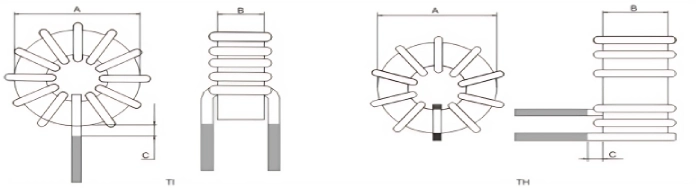

SHAPE AND DIMENSIONS

A toroidal chokes inductor is an electronic component that is designed to filter or suppress common mode noise in electrical circuits by providing a high impedance path to the common mode current while allowing the desired differential mode current to pass through with minimal impedance.
The applications for this toroidal chokes inductor is for power adapter, DC-DC converter or AC-DC converter as example. The insulation between two winding normally will be 1.5KV at minimun. The core which used on the pin type of toroidal chokes inductor will be manganese zinc and nanocrystal core to achieve higher inductance value and lower DC resistance. Customer’s specifications are welcome.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offer customer reliable quality and stable (short) delivery date (urgent case, the delivery date could be 1 weeks only)

Zxcompo Customization:
Except for the standard characteristic of our series specification, ZXcompo Electronics also offer the customization product with low minimum order quantity (MOQ), tighter tolerance, different inductance and frequency applications.

Image	Title	Size(mm)	Inductance(uH)	Isat Max(mA)	Irms Max(mA)	DCR Max(Ω)	Action
	TI3026-500	11 x 6	50uh	800	200	0.120	Details label Inquiry label
	TI3026-101	11 x 6	100	700	150	0.360	Details label Inquiry label
	TI3726-240	12 x 7	24	1000	250	0.080	Details label Inquiry label
	TI4426-5R6	16 x 8	5.6	3000	700	0.020	Details label Inquiry label
	TI4426-500	16 x 8	500	2000	500	0.050	Details label Inquiry label
	TI5026-600	18 x 8	60	3000	700	0.100	Details label Inquiry label
	TI5026-151	18 x 8	150	2500	600	0.200	Details label Inquiry label
	TI6026-220	20 x 10	22	5000	1000	0.045	Details label Inquiry label
	TI6026-900	20 x 10	90	3000	700	0.075	Details label Inquiry label
	TI6826-250	22 x 10	25	4500	900	0.050	Details label Inquiry label
	TI6826-320	22 x 10	32	4000	800	0.060	Details label Inquiry label
	TI8026-500	26 x 12	50	5000	1000	0.030	Details label Inquiry label
	TI8026-221	26 x 12	220	3500	750	0.065	Details label Inquiry label

PRODUCT IDENTIFICATION

• Series name.
• Product symbol (I、H、II、HH).
• Magnetic core specification.
• Material No.
• Inductance: R47-0.47uH  4R7-4.7uH  470-47uH .
• Tolerance:  K: ±10%  M: ±20%  N: ±30%  .
