SUQ24H Series Flat Coil Common Mode SMD Inductors

Features

Stable performance, high-frequency efficiency.
High power, low DC resistance, low-temperature rise.
Easy to plug in, high difference energy.

Applications

AP Routers, STBs and LCD TVs.
Monitors, Game consoles and LED lighting
Notebook computer, DC-DC converters, etc
Reliable SMD Common Mode Filters Manufacturer for your specific needs.
The entire series is RoHS/REACH compliant and halogen-free.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

Through-hole common-mode inductors are typically larger and more mechanically stable than surface-mount common-mode inductors, making them suitable for high-voltage or high-power applications. They are electronic components designed to filter or suppress common-mode noise in a circuit by providing a high-impedance path for common-mode currents while allowing the desired differential-mode current to pass with minimal impedance. Custom products are welcome and available.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. We can dispatch goods within 10 or 20 working days for specific product ranges. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

Parameters of SUQ Series Inductor

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, you are welcome to contact us. Contact email: sales@ZXcompo.com.

Image	Part Number	Wire Diameter	Inductance (mH)	Rated Current	Power Range	DCR(mΩ)	Action
	SUQ24H-10mH	0.3*1.5	10mH	4.5A	250W	75 Max	Inquiry
	SUQ24H-5mH	0.4*1.5	5mH	6.5A	360W	60 Max	Inquiry

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

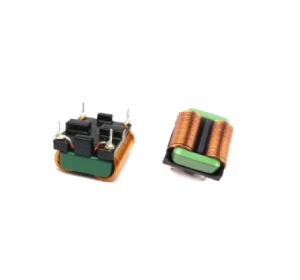

SUQ12V Series Flat Common Mode SMD Inductors
