SMRH Series SMD Shielded Power Inductors | SMRH129

Surface-mount shielded inductors are designed to reduce electromagnetic interference (EMI) by enclosing the coil in a shielded housing. The housing is typically made from a ring core, which is used to cover the areas around the coil and create a closed magnetic circuit. This helps to block external and internal magnetism from affecting the performance of the inductor, which can improve its reliability and accuracy in applications where EMI is a concern. The use of a shielded housing can also help to protect the inductor from external sources of interference, such as other electronic devices or electrical noise.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
To fit the different applications, our SMD shielded power inductor SDS series has a wide range of industry-standard footprints, from the smallest 3.0mm to 12.0mm. The inductance ranges from 1.0uh(1R0) to 1500uH (152) and the customized inductance value (customized characteristic of SMD shielded power inductor) is available.
All of the products will be checked by the fully automated machine to reach our goal; zero defects. Furthermore, except for the standard part, a customized item is suitable for us.
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

Remark: The design is as per the customer’s request specification.

📨*Send us your project requirements!*📨

Parameters of SMRH Series Inductor

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, you are welcome to contact us. Contact email: sales@ZXcompo.com.

Image	Title	Size(mm)	Inductance(uH)	Isat(mA)	Irms(mA)	DCR Max(Ω)	Action
	SMRH129-1R0	12.0x 12.0 x 10.0Max	1uh	20000	20000	0.0065	Details label Inquiry label
	SMRH129-4R7	12.0x 12.0 x 10.0Max	4.7	10000	10000	0.015	Details label Inquiry label
	SMRH129-100	12.0x 12.0 x 10.0Max	10	9000	9000	0.025	Details label Inquiry label
	SMRH129-330	12.0x 12.0 x 10.0Max	33	5300	5300	0.0495	Details label Inquiry label
	SMRH129-101	12.0x 12.0 x 10.0Max	100	1900	1900	0.15	Details label Inquiry label
	SMRH129-561	12.0x 12.0 x 10.0Max	560	800	800	0.715	Details label Inquiry label
	SMRH129-122	12.0x 12.0 x 10.0Max	1200	500	500	1.3	Details label Inquiry label
	SMRH129-332	12.0x 12.0 x 10.0Max	3300	350	350	5.5	Details label Inquiry label

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

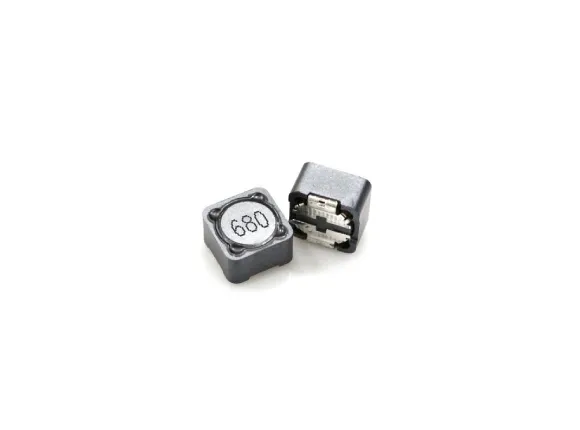

SMRH Series Inductor Product Display

Product Identification:

• Series name.
• Dimensions D×T.
• Inductance: R47-0.47uH 4R7-4.7uH 100-10uH.
• Tolerance: K: ±10% M: ±20% N: ±30%.
