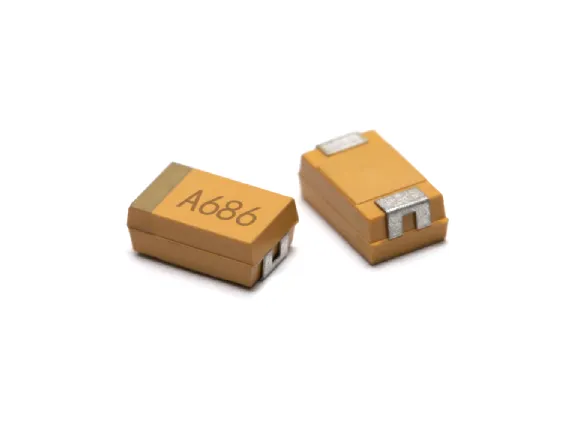

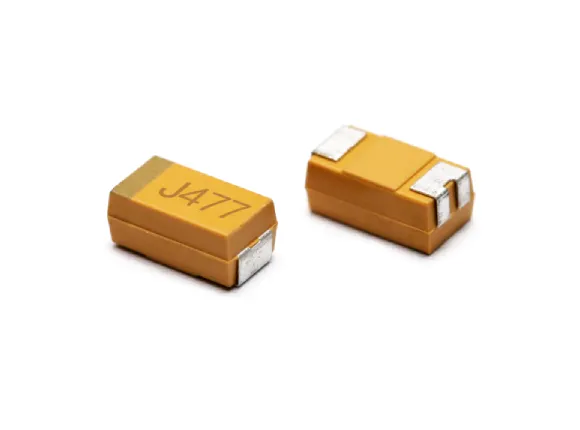

CA45A Series SMD Solid Tantalum Chip Capacitors

Features

New monolithic structre, has high reliability.
Small size, capacitors, fixed, chip.
Leadless Surface Mount.
Supplied in tape on reel.

Applications

General Low Power DC/DC and LDO
Entertainment / Infotainment Systems
Height Restricted Design
It is used in avionics and industrial applications and tested for CECC Specifications 30801-005 and 30801-011 (CTC4).

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

SMD solid tantalum chip capacitors are precision molded capacitors with small case sizes, extended range values, and voltage ranges from 2.5VDC to 50VDC. The T491 series offers a capacitance range of 0.1µF to 1000µF and RoHS-compliant symmetrical terminations. Zcompo CA45A series solid tantalum chip capacitors meet or exceed EIA standard 535BAAC.

Zcompo Electronics offers tantalum capacitors from industry-leading manufacturers. Zcompo solid tantalum capacitors are high-reliability commercial off-the-shelf (COTS) capacitors with very low ESR and high surge current capability. These surface-mount MnO2 capacitors cover a range of applications including industrial, automotive, defense, and aerospace grade options.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. We can dispatch goods within 10 or 20 working days for specific product ranges. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Whether your design targets power supplies, filtering circuits, or specialized applications, our custom semi-shielded SMD inductors can be meticulously optimized to excel within your precise field of application. If your PCB layout calls for a particular size to fit seamlessly, rest assured, we’ve got you covered. Our expertise allows us to customize the dimensions, ensuring a perfect integration with your design.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

Part Number	EIA	Dimensions (mm)
Part Number	EIA	L	W	H	L1	W1	M
P	2012-12	2.0±0.2	1.25±0.2	1.2±0.2	0.5±0.1	0.9±0.1	0.7±0.1
A	3216-18	3.2±0.2	1.6±0.2	1.6±0.2	0.65±0.2	1.2±0.2	1.0±0.2
B	3528-21	3.5±0.2	2.8±0.2	1.9±0.2	0.7±0.2	2.0±0.2	1.2±0.2
C	6032-28	5.8±0.3	3.2±0.3	2.5±0.3	1.35±0.2	2.2±0.2	1.45±0.2
E(D)	7343-31	7.3±0.3	4.3±0.3	2.8±0.3	1.35±0.2	3.0±0.2	1.6±0.2
H(E、X)	7343-43	7.3±0.3	4.3±0.3	4.1±0.3	1.35±0.2	3.0±0.2	1.6±0.2
F	7360-38	7.3±0.3	6.0±0.3	3.5±0.3	1.3±0.2	4.0±0.2	1.9±0.2

Product Identification:

CA45A	-B	-4V	-220uF	-K
①	②	③	④	⑤

Type.
Productor Code: Length（L）×Width（W）.
Rate Voltage: 6R3: 6.3V; 10v: 10V;
Normal Capacitance.
Tolerance: K ±10% ; M ±20%.

CA45A Series SMD Solid Tantalum Chip Capacitors

Detailed informations including Capacitance, tolerance, rated voltage and DC leakage current.
