SD Series SMT Unshielded and Shielded Power Inductors

This miniature wirewound SMD power inductor produce by fully automated winding / soldering / testing and packing machine. 100% check before each shipment, the testing included the characteristic inductance value, DC resistance, Isat current and layer isolation.
Inductors, also called coil or reactor, is an electrical component which resists changes in electric current passing through it. It consists of a conductor such as a wire, wound into a coil. When the electric current changes, the magnetic field in the coil induces a voltage, opposing a change in current.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offer customer reliable quality and stable (short) delivery date (urgent case, the delivery date could be 1 weeks only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. Our team of engineers has 15 years of experience in this field, we can modify the magnetic core powder to design and produce the most suitable products for customers to meet their applications, design and produce the most suitable products for customers to meet their applications.

Whether your design targets power supplies, filtering circuits, or specialized applications, our custom semi-shielded SMD inductors can be meticulously optimized to excel within your precise field of application. If your PCB layout calls for a particular size to fit seamlessly, rest assured, we’ve got you covered. Our expertise allows us to customize the dimensions, ensuring a perfect integration with your design.

Remark: The design is as per the customer’s request specification.

📨*Send us your project requirements!*📨

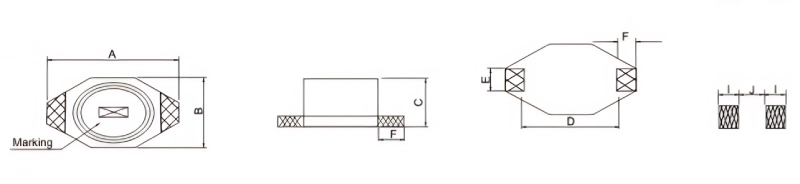

SMT Unshielded Inductor Specifications:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

Parameters of SMT Unshielded Inductor:

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, you are welcome to contact us. Contact email: sales@ZXcompo.com.

Image	Part Number	Inductance (µH)	Size(mm)	DCR Max (Ω)	Rated Current Max (mA)	Action
	SD0402D	1.0 µH – 1000 µH	6.6x 4.45 x 2.92	0.050Ω – 20.0Ω	100mA – 2900mA	Details Inquiry
	SD0402T	1.0 µH – 1000 µH	6.6x 4.45 x 2.92	0.040Ω – 25.0Ω	70mA – 1400mA	Details Inquiry
	SD0804D	1.0 µH – 1000 µH	12.95x 9.4 x 5.21	0.009Ω – 3.0Ω	300mA – 9000mA	Details Inquiry
	SD0804T	1.0 µH – 47 µH	12.95x 9.4 x 5.21	0.021Ω – 0.472Ω	1000mA – 5600mA	Details Inquiry
	SD1306D	1.0 µH – 2000 µH	18.54x 15.24 x 7.11	0.009Ω – 4.50Ω	300mA – 20000mA	Details Inquiry
	SD1306T	10 µH – 1000 µH	18.54x 15.24 x 7.11	0.040Ω – 2.01Ω	800mA – 8000mA	Details Inquiry

Product Identification:

• Series name.
• Dimensions D×T.
• Type: D-Unshielded T-Shielded.
• Inductance: R47-0.47uH 4R7-4.7uH 470-47uH 471-470uH.
• Tolerance: K: ±10% M: ±20% N: ±30%.
