Zxcompo offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With small size and high inductance value.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. We can dispatch goods for specific product ranges within 10 or 20 working days. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)
Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. Our team of engineers has 15 years of experience in this field, we can modify the magnetic core powder to design and produce the most suitable products for customers to meet their applications, design and produce the most suitable products for customers to meet their applications.
Remark: The design is as per the customer’s request specification.
3 Pin Radial Inductor Specifications:
| Part Number |
Dimensions(mm) |
| ФA(MAX) |
B(MAX) |
C(MAX) |
D |
| RIT0608 |
11.0 |
20.0 |
3.0±0.5 |
0.65±0.1 |
| RTI0810 |
13.5 |
9.5 |
4.0±0.5 |
0.65±0.1 |
| RIT0912 |
15.0 |
13.5 |
5.0±0.5 |
0.65±0.1 |
| RIT1012 |
16.0 |
11.5 |
6.0±0.5 |
0.80±0.1 |
| RIT1016 |
20.0 |
12.0 |
6.0±0.5 |
0.80±0.1 |
Parameters of 3-Pin Inductor
The following are the parameters of this series of inductors Zxcompo has produced. If you want these products, you are welcome to contact us. The contact email is sales@ZXcompo.com.
| Part Number |
Inductance
(uH) |
Tolerance |
Test condition
(KHz/V) |
DCR Max(Ω) |
Rated Current
Max(mA) |
| ZRIT0608 |
1uh-100mH |
K, M |
1/0.25 |
0.001-200 |
1-5000 |
| ZRTI0810 |
1uh-200mH |
K, M |
1/0.25 |
0.001-400 |
1-8000 |
| ZRIT0912 |
1uh-200mH |
K, M |
1/0.25 |
0.001-400 |
1-9000 |
| ZRIT1012 |
1uh-300mH |
K, M |
1/0.25 |
0.001-400 |
1-9000 |
| ZRIT1016 |
1uh-300mH |
K, M |
1/0.25 |
0.001-400 |
1-9000 |

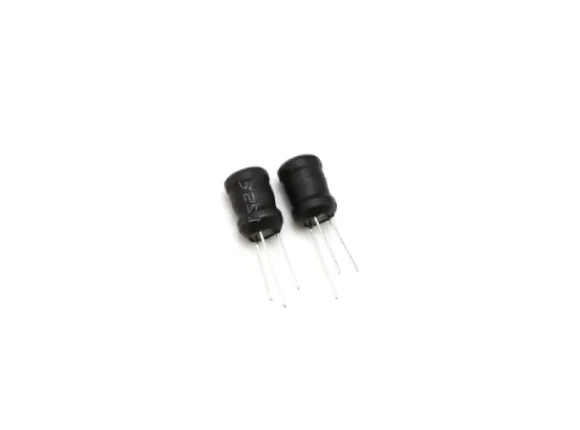

3-Pin Radial Power Inductor Images:
Product Identification:
- 3-pin inductor Series name.
- Leaded inductor Dimensions D×L.
- Radial Inductance: R47-0.47uH 4R7-4.7uH 470-47uH.
- Tolerance: K: ±10% M: ±20%.
