RIT Series 3 Pin Inductors

Features

  • ROHS, Halogen and REACH Compliance.
  • Small-size radial lead type.
  • Contain high-frequency ferrite
  • Comparatively large rated current.
  • High Q with high rate current.

Applications

  • Power supplies, DC-DC converters.
  • TVs, VTRs, computers.
  • Computer peripherals.
  • Telephones air-condition
  • Home electric appliance.
  • Electronic toys and games

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

  • Dimensions
  • Downloads
  • Zxcompo offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With small size and high inductance value.

    Zxcompo Leadtime:
    Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

    Zxcompo Customization:
    In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. Our team of engineers has 15 years of experience in this field, we can modify the magnetic core powder to design and produce the most suitable products for customers to meet their applications, design and produce the most suitable products for customers to meet their applications.

    Remark: The design is as per the customer’s request specification.

    📨*Send us your project requirements!*📨

    3 Pin Radial Inductor Specifications:


    Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

    3-Pin Inductor Manufacturer

    Parameters of 3-Pin Inductor


    The following are the parameters of this series of inductors Zxcompo has produced. If you want these products and welcome to contact us. Contact email: sales@ZXcompo.com.

    Part Number Dimensions(mm)
    ФA(MAX) B(MAX) C(MAX) D
    RIT0608 11.0 20.0 3.0±0.5 0.65±0.1
    RTI0810 13.5 9.5 4.0±0.5 0.65±0.1
    RIT0912 15.0 13.5 5.0±0.5 0.65±0.1
    RIT1012 16.0 11.5 6.0±0.5 0.80±0.1
    RIT1016 20.0 12.0 6.0±0.5 0.80±0.1

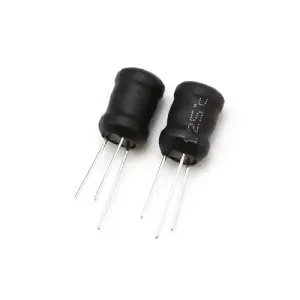

    3 Pin Radial Leaded Power Inductor Images:


    RIT Series 3 Pin Inductors

    Product Identification:


    RIT 810 4R7 M
    • 3-pin inductor Series name.
    • Leaded inductor Dimensions D×L.
    • Radial Inductance: R47-0.47uH 4R7-4.7uH 470-47uH.
    • Tolerance: K: ±10% M: ±20%.
  • 3 Pin Inductor Manufacturers

    RIT Series 3 Pin Inductors

    Detailed informations including inductance, tolerance, rated current and DCR.
