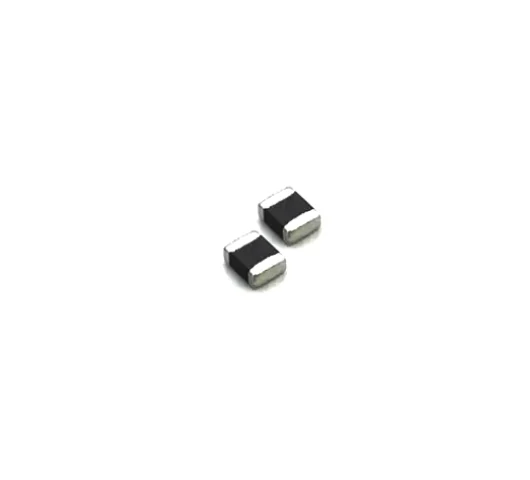

Ferrite beads employ the dissipation of high-frequency currents in a ferrite ceramic to build high-frequency noise suppression devices. the SMD ferrite bead could transfer the high-frequency noise into heat and ferrite beads may also be called blocks, cores, rings, EMI filters, or chokes. EMI multilayer ferrite chip bead is easy to use in various applications due to several reasons. Due to their high magnetic permeability, Ferrite materials are always used at high frequencies. On the other hand, the inductance value is small and the loss is low at low frequencies. Typically, Z (impedance value) is tested at 100MHz for the highest impedance value. Ferrite chip beads are also called ferrite blocks. This SMD EMI filter has wide impedance characteristics. Their impedance mainly consists of a resistive component. Therefore, when this component is inserted in series with the noise conduction path, it can attenuate the noise content. Whether you’re working on consumer electronics, industrial machinery, or any other project, our ferrite beads are up to the task.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. We can dispatch goods within 10 or 20 working days for specific product ranges. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)
Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Shape and Dimensions:
Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.
| Part Number |
Dimensions (mm) |
| A |
B |
C |
| PB1005 |
0.35 |
0.6 |
0.6 |
| PB1608 |
0.6 |
1.0 |
0.8 |
| PB2012 |
1.0 |
1.0 |
1.0 |
| PB3216 |
2.2 |
1.1 |
1.4 |
| PB3225 |
2.2 |
1.1 |
2.2 |
| PB4516 |
3.0 |
1.3 |
1.6 |
| PB4532 |
3.0 |
1.3 |
3.0 |
Parameters of PB Series Inductor
The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, welcome to contact us. Contact email: sales@ZXcompo.com.
Product Identification:
| PB |
3216 |
600 |
/3A |
T |
(f) |
| ① |
② |
③ |
④ |
⑤ |
⑥ |
- Series name.
- Dimensions L×W 3216: 1.6mm in length, 0.8mm in width.
- Nominal impedance 600: 60Ω; 121: 120Ω; 102: 1000Ω.
- Rated Current 3A: 3.0A; 1A5: 1.5A.
- Package: B: by bulk T: Tape and Reel
- Pb Free
