Network Transformer

Features

Low insertion loss, high return loss.
Small volume and suface sticker structure can be achieved using high frequency.
No need for grounding and greater circuit design flexibility.
Operating temperature range: -55℃～125℃.

Applications

Widely used in ADSL, VDSL, .Wireless broadband, Ethernet, high-speed LAN.
Widely used in T1/E1/CEPT/ISDN-Pri, T3/DS3/E3/STS-1/ISDNS, ISDNU, Set-top boxes and Military radar.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

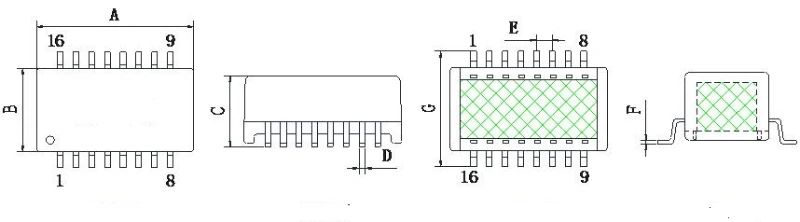

Part Number	Dimensions (mm)
Part Number	A	B	C	D	E	F	G
NWT130706	12.70±0.50	6.80±0.30	5.80±0.25	0.48±0.08	1.27±0.10	0.25	9.60±0.50
NWT120906	12.50±0.50	6.80±0.30	5.60±0.25	0.48±0.08	1.27±0.10	0.25	9.50±0.50

Transformer Product Display:

NWT	130706	-1	-A
①	②	③	④

Series name.
Dimensions: 130706 Length（L）13mm×Width（W）7mm×High(H)6mm.
Structure type.
Packing style: A: Encapsulated; B: Molded.

NWT Series Network Transformer

Detailed informations including turn ratio, return loss, common mode rejection ratio and Cross Interference.
