LQH Series SMD Power Inductors

Non-shielded SMD power inductors are typically used in applications where a high level of electromagnetic interference (EMI) is not a concern. They are commonly used in power supply circuits, DC-DC converters, and other types of electronic circuits where high currents are present.
This miniature wire wound SMD power inductor is produced by a fully automated winding/soldering/testing and packing machine. 100% check before each shipment, the testing included the characteristic inductance value, DC resistance, Isat current and layer isolation.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Whether your design targets power supplies, filtering circuits, or specialized applications, our custom semi-shielded SMD inductors can be meticulously optimized to excel within your precise field of application. If your PCB layout calls for a particular size to fit seamlessly, rest assured, we’ve got you covered. Our expertise allows us to customize the dimensions, ensuring a perfect integration with your design.

Remark: Design as Customer’s request specification.

📨*Send us your project requirements!*📨

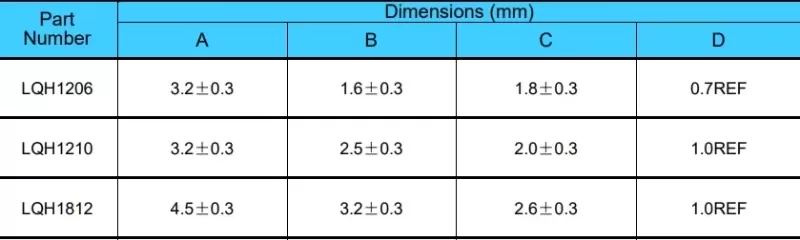

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

Parameters of LQH Series Inductor

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, welcome to contact us. Contact email: sales@ZXcompo.com.

Image	Part Number	Inductance (µH)	Size(mm)	DCR Max (Ω)	Rated Current Max (mA)	Action
	LQH1206	0.15 µH – 100 µH	3.2x 1.6 x 1.8	0.10Ω – 12Ω	70mA – 1000mA	Details Inquiry
	LQH1210	0.12 µH – 560 µH	3.2x 2.5 x 2.0	0.08Ω – 28Ω	40mA – 1500mA	Details Inquiry
	LQH1812	0.12µH – 5000µH	4.5x 3.2 x 2.6	0.035Ω – 130Ω	20mA – 4000mA	Details Inquiry

Product Identification:

• Series name.
• Dimensions D×T.
• Package: B: by bulk T: Tape and Reel.
• Inductance: R47-0.47uH 4R7-4.7uH 470-47uH.
• Tolerance: K: ±10% M: ±20% N: ±30%.
