T Series Toroidal Choke Coil Inductors

A toroidal chokes inductor is an electronic component that is designed to filter or suppress common mode noise in electrical circuits by providing a high impedance path to the common mode current while allowing the desired differential mode current to pass through with minimal impedance.
The applications for this toroidal choke inductor are for power adapters, DC-DC converters, or AC-DC converters for example. The insulation between two winding normally will be 1.5KV at minimum. The core used on the pin type of toroidal choke inductor will be manganese zinc and nanocrystal core to achieve higher inductance value and lower DC resistance. Customer’s specifications are welcome.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. We can dispatch goods within 10 or 20 working days for specific product ranges. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
Except for the standard characteristic of our series specification, ZXcompo Electronics also offers a customization product with low minimum order quantity (MOQ), tighter tolerance, and different inductance and frequency applications.

Remark: The design is as per the customer’s request specification.

📨*Send us your project requirements!*📨

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

Parameters of Toroidal Choke Coil Inductors

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, you are welcome to contact us. Contact email: sales@ZXcompo.com.

Image	Title	Inductance (uH)	Size(mm)	DCR Max (Ω)	Irms Max (mA)	Action
	TI Series Toroidal Core Inductors	0.82 – 10000	11*6/12*7/16*8/18*8/20*10/22*10/26*12/24*13/31*16/34*13/50*20	0.005 – 0.200	150  – 12000	Details Inquiry
	TII Series Toroidal Coil Inductors	1.2 – 200	22*12/24*14/20*10	0.010 – 0.080	700 – 900	Details Inquiry
	TH Series Toroidal Inductors	0.56 – 500	12*7/12*6/17*8/18*12/18*12/19*12/30*13/32*16	0.010 – 0.500	200 – 2000	Details Inquiry

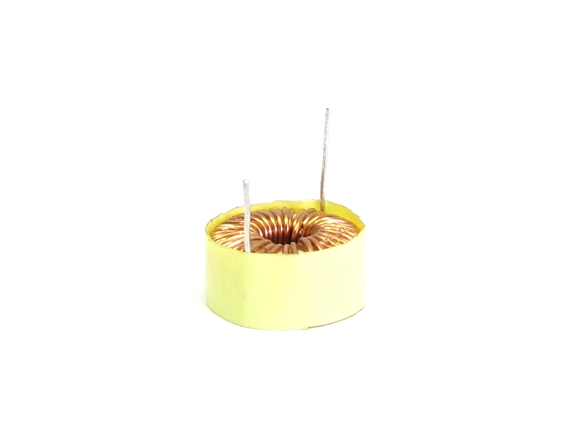

	THH Series Toroidal Choke Coil Inductors	1.2 – 220	10*6/20*10/21*12/22*10/24*10	0.005 – 0.450	20 – 2000	Details Inquiry
	THHB Series Common Mode Choke	1.2 – 500	13*13	0.005 – 0.250	20 – 2000	Details Inquiry

Toroidal Choke Coil Inductor Product Display

Product Identification:

• Series name.
• Product symbol (I、H、II、HH).
• Magnetic core specification.
• Material No.
• Inductance: R47-0.47uH  4R7-4.7uH  470-47uH.
• Tolerance:  K: ±10%  M: ±20%  N: ±30%  .
