CI Series Multilayer Chip Ferrite Inductors

SMD multilayer chip inductor is formed by several layers of ceramic (ferrite) material. Multilayer chip inductors feature with low cost and miniature size compared to the wire-wound inductor. Normally, the Inductors of the multilayer structure will be chip beads to work as the EMI filter. However, for some applications, because of the limitation of the dimension, the customer also chooses the multilayer product which works as the inductor. In high frequencies like GHZ, the raw material for the core body will be ceramic. In some cases, the customer will use the multilayer chip inductor in the applications of DC-DC, which no high current pass through. However, due to the technology advanced, the design engineer will need a product that has a small dimension but could carry up the high current.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offer customer reliable quality and stable (short) delivery date (urgent case, the delivery date could be 1 weeks only)

Zxcompo Customization:
To meet the different requirement of customer, Zxcompo provide the various size of multilayer ceramic chip inductor 0402 0603 and 0805. In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

Remark: Design as Customer’s request specification.

📨*Send us your project requirements!*📨

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

Parameters of CI Series Inductor

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, welcome to contact us. Contact email: sales@ZXcompo.com.

Image	Part Number	Inductance (µH)	Size(mm)	DCR Max (Ω)	Rated Current Max (mA)	Action
	CI1005	0.047µH – 10µH	1.0 x 0.5 x 0.5	0.45Ω – 3.15Ω	2mA – 25mA	Details Inquiry
	CI1608	0.047µH – 33µH	1.6 x 0.8 x 0.8	0.30Ω – 2.95Ω	1mA – 50mA	Details Inquiry
	CI2012	0.047µH – 47µH	2.0 x 1.2 x 1.2	0.20Ω – 3.0Ω	4mA – 300mA	Details Inquiry
	CI3216	0.047µH – 47µH	3.2 x 1.6 x 0.8	0.15Ω – 3.40Ω	3mA – 300mA	Details Inquiry

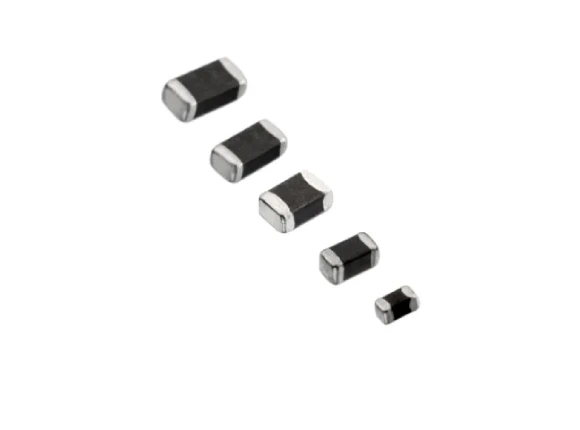

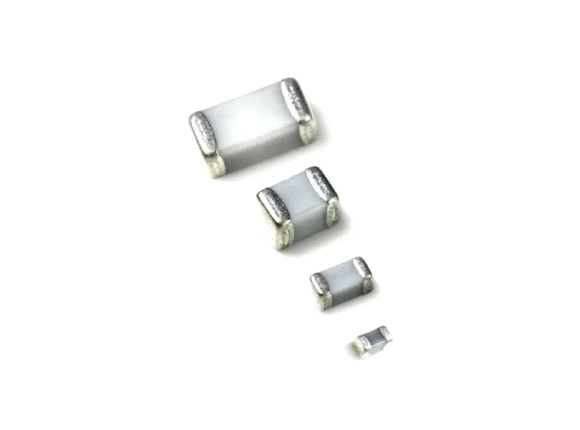

Multilayer Chip Ferrite Inductors Product Display

Product Identification:

• Series name.
• Dimensions L×W 1608: 1.6mm of length, 0.8mm of width.
• Performance code  2B: Moisture proof, highest operating temperature is125℃.
• Inductance: R56-0.56Uh   5R6-5.6uH.
• Tolerance: J:±5%  K: ±10%  M: ±20%.
• Package: B:by bulk   T: Tape and Reel.
• Pb Free.
