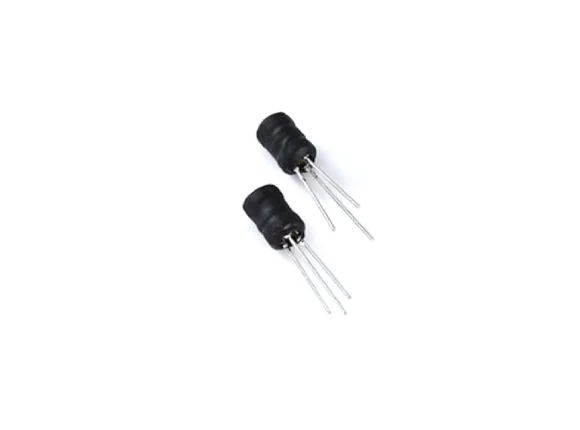

RIT Series 3 Pin Radial Lead Inductors

Features

ROHS, Halogen and REACH Compliance.
Small-size radial lead type.
Contain high-frequency ferrite
Comparatively large rated current.
High Q with high rate current.

Applications

Power supplies, DC-DC converters.
TVs, VTRs, computers.
Computer peripherals.
Telephones air-condition
Home electric appliance.
Electronic toys and games

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

Zxcompo offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With small size and high inductance value.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. We can dispatch goods for specific product ranges within 10 or 20 working days. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. Our team of engineers has 15 years of experience in this field, we can modify the magnetic core powder to design and produce the most suitable products for customers to meet their applications, design and produce the most suitable products for customers to meet their applications.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

3 Pin Radial Inductor Specifications:

China 3 Pin Radial Lead Inductors

Part Number	Dimensions(mm)
Part Number	ФA(MAX)	B(MAX)	C(MAX)	D
RIT0608	11.0	20.0	3.0±0.5	0.65±0.1
RTI0810	13.5	9.5	4.0±0.5	0.65±0.1
RIT0912	15.0	13.5	5.0±0.5	0.65±0.1
RIT1012	16.0	11.5	6.0±0.5	0.80±0.1
RIT1016	20.0	12.0	6.0±0.5	0.80±0.1

Parameters of 3-Pin Inductor

The following are the parameters of this series of inductors Zxcompo has produced. If you want these products, you are welcome to contact us. The contact email is sales@ZXcompo.com.

Part Number	Inductance (uH)	Tolerance	Test condition (KHz/V)	DCR Max(Ω)	Rated Current Max(mA)
ZRIT0608	1uh-100mH	K, M	1/0.25	0.001-200	1-5000
ZRTI0810	1uh-200mH	K, M	1/0.25	0.001-400	1-8000
ZRIT0912	1uh-200mH	K, M	1/0.25	0.001-400	1-9000
ZRIT1012	1uh-300mH	K, M	1/0.25	0.001-400	1-9000
ZRIT1016	1uh-300mH	K, M	1/0.25	0.001-400	1-9000
