22nH 0.38A High Frequency Core Inductors

Features

ROHS and REACH compliant.
Inductance Range: 22 µH
DC Resistance: 0.40 Ω
Rated DC Current: 380 mA
Core Material: Ferrite & Ceramic
Material: Copper Wire

Applications

RF products for cellular phones.
GPS receiver, base station and Repeater.
Wireless LAN/Mouse/keyboard/earphone.
Remote control and Security system.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

The miniature SMD wire-wound inductor is a type of inductor where the winding wire is wrapped around a core without magnetic shielding. On the other hand, the miniature SMD chip inductor is assembled using fully automated processes. Both types of inductors serve the same purpose in electronic circuits, particularly in applications with limited space, such as power supplies, DC-DC converters, and other electronic circuits.
The type of miniature wire-wound inductor is suitable for the tuner (of circuits), and filter/amplification circuits because the product has high Q factors, high SRF (self-resonant frequency), and tight tolerance (2% available). Ceramic body and wire wound construction provide high SRFs. The product is RoHS, REACH, and Halogen-free compliance.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans are available in urgent cases. We can dispatch goods within 10 or 20 working days for specific product ranges. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

Notes:
1. Current that causes a 40°C temperature rise at 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
2. Maximum current that can be applied at 85°C.
3. Maximum current that can be applied at 125°C.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

Parameters of HWI Series Inductor

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, you re welcome to contact us. Contact email: sales@ZXcompo.com.

Construction	Size(mm)	Inductance(nH)	Impedance tolerance	Test Frequency (MHz)	Qmin	Irms(mA)	DCR(Ω)
Unshielded Inductor	1.19x 0.66x 0.66	22	±25%	100	24	0.38	0.40

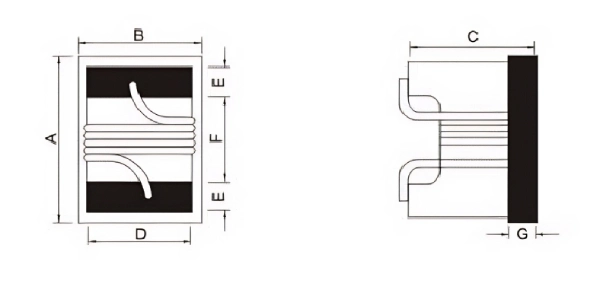

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.
