12uH 0.96A Shielded Radial Leaded Inductors

Zxcompo through-hole power inductors provide rugged, low-cost, shielded solutions for a variety of choke applications. They come in a wide range of inductance values covering three sizes/series. Due to the excellent characteristic of the ferrite core, the product provides excellent absorption of high-frequency noise and is highly effective as a countermeasure against common mode noise without adverse effects on signal quality. Zxcompo also provides the clip-on ring core which utilizes the Mn-Zn core. They are also suitable for automotive applications. Inductors, also called coils or reactors, are electrical components that resist changes in electric current passing through them. It consists of a conductor such as a wire, wound into a coil. When the electric current changes, the magnetic field in the coil induces a voltage, opposing a change in current.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

Notes:
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc; measured on an Agilent/HP 4284A LCR-meter or equivalent.
DCR at 25°C. For other operating temperatures, use this DCR in the Temperature calculator.
SRF was measured using an Agilent/HP 4191A or equivalent. Details
Isat: DC at 25°C that causes the specified inductance to drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Remark: The design is as per the customer’s request specification.

📨*Send us your project requirements!*📨

Parameters of Radial Inductors:

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, welcome to contact us. Contact email: sales@ZXcompo.com.

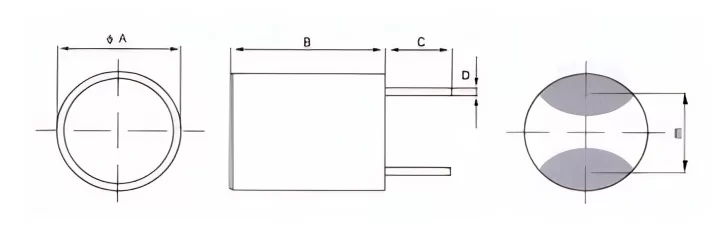

Shape and Dimensions:

Our team of engineers has 15 years of experience in this field. We design and produce the most suitable products for our customers to meet their applications. Contact email: sales@ZXcompo.com.

Product Identification:

• Radial inductor Series name.
• Leaded inductor Dimensions D×L.
• Inductance: R47-0.47uH 4R7-4.7uH 470-47uH.
• Tolerance: K: ±10% M: ±20%.
